aoni AI Micro-Node
EdgeFrog栖界 CA320
For enterprise AI private deployment, integrating AI inference servers, storage, network, cooling, UPS and software in a single cabinet.
Product Features:
- Single-cabinet integration, reducing deployment costs
- Load noise ≦65dB, suitable for office environments
- Factory pre-tested, 1-2 day on-site deployment

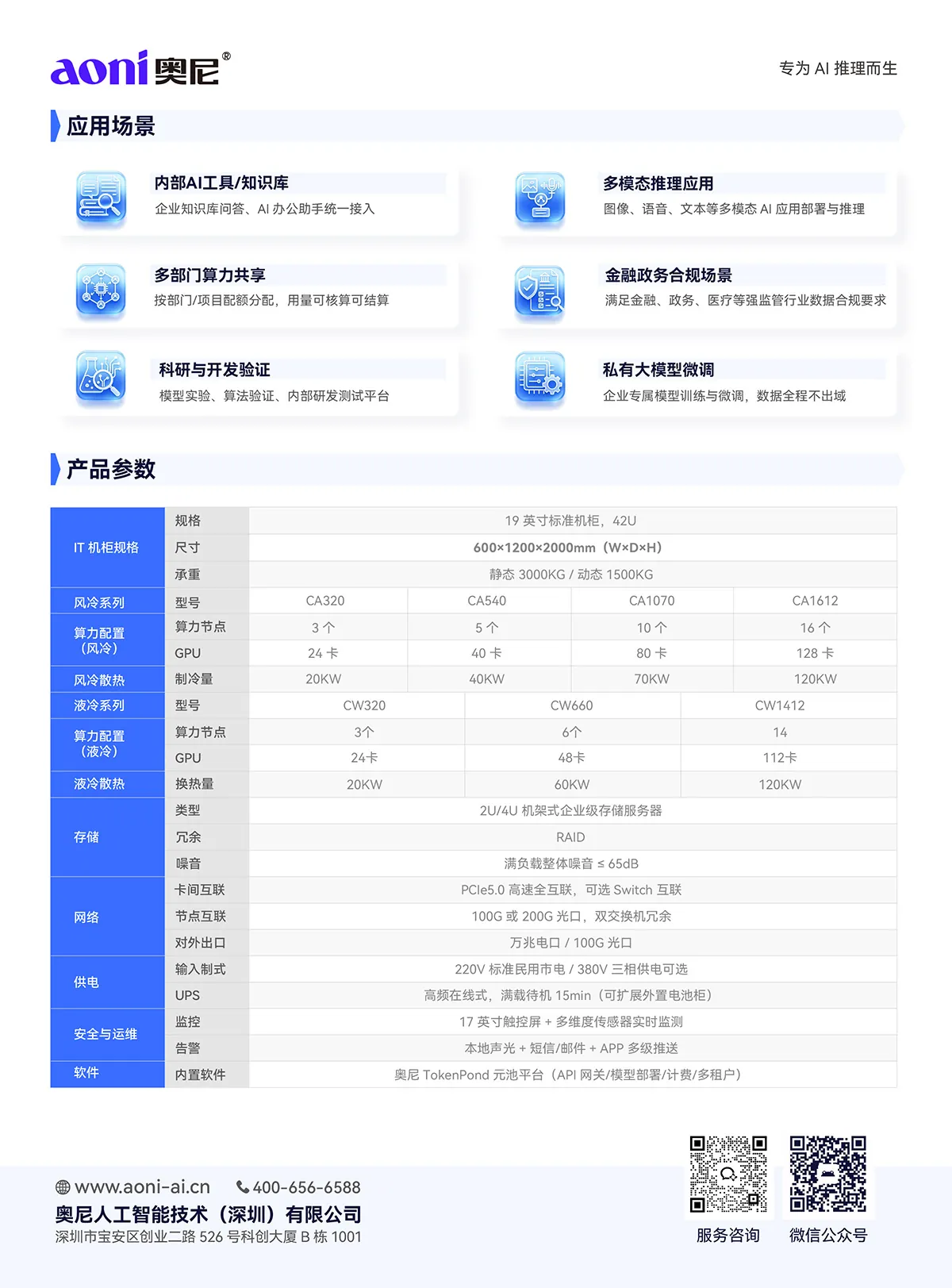

| Model | EdgeFrog栖界 CA320 |
| Specification | 19" standard rack, 42U |
| Dimensions | 600×1200×2000mm (W×D×H) |
| Load Capacity | Static 3000KG / Dynamic 1500KG |
| Compute Nodes | 3 |
| GPU | 24 cards |
| Type | 2U/4U rackmount enterprise storage server |
| Redundancy | RAID |
| Cooling Capacity | 20KW |
| Noise | Full-load noise ≤65dB |
| Inter-card Interconnect | PCIe5.0 high-speed full interconnect, optional Switch |
| Node Interconnect | 100G or 200G optical, dual switch redundancy |
| External Port | 10GbE electrical / 100G optical |
| Input | 220V standard utility / 380V three-phase optional |
| UPS | High-frequency online, full-load standby 15min (expandable external battery cabinet) |
| Monitoring | 17" touchscreen + multi-dimensional sensor real-time monitoring |
| Alarm | Local audio/visual + SMS/email + APP multi-level push |
| Built-in Software | AONI CorePond platform (API gateway/model deployment/billing/multi-tenant) |
